Client Performance Testing

Use a Real Browser for Performance Testing

René Schwietzke, Xceptance

Motivation

Why do we need to know how a browser does things

„About 25 years ago Jakob Nielsen wrote a book called Usability Engineering and he offered some advice about response times which had already been in place for at least 25 years before he wrote the book.“

0.1 second is about the limit for having a visitor feel as though the system is reacting instantaneously.
1.0 second is about the limit for a visitor’s flow of thought to stay uninterrupted, even though the visitor will notice the delay.
10 seconds is about the limit for keeping the visitor’s attention focused on the task they want to perform.

Perception

Data vs. Feelings

Performance is a measure of how fast your site is
Perceived performance is a measure of how fast a visitor thinks your site is

	First	Repeated
TTFB	0.8s	0.8s
First Paint	2.2s	1.9s
DOMContentLoaded	3.3s	2.4s
Load	6.6s	4.9s
Finished	9.2s	6.7s
Visual Complete	9.0s	7.4s
Bytes Transferred	3,100kB	187kB
Request Count	268/268	69/268

Timing and Events

Most important events during a page's lifecycle

Navigation Timing API

Events - TTFB/TTLB

When do we get things

Time to first byte
Time to last byte
Interesting because we know how long server processing and networking took
Interesting because we know how long downloading took

The following technical details are involved:
- DNS
- TCP handshake
- TLS handshake
- Send time
- Server processing time
- Time to first byte delivered (contains latency)
- Time to last byte downloaded (also with latency)
- Network capacity

DOM Events

A series of timestamps and events, measurements by Performance Timing API

domLoading: Got the first bytes and started parsing
domInteractive: Got all HTML, finished parsing, finished async JS, finished blocking JS, starting deferred JS processing
domContentLoaded: Deferred JS was executed, DomContentLoaded event fires and triggers event handler for JS
domComplete: All content has been loaded (aka images and more), DomContentLoaded event was fully processed (attached JS), fire onload event and start processing JS
loadEventEnd: All JS attached to onload was executed, dust should have settled

Events - Painting

User does not care about technical details

User judges by impression
No interest in DOM numbers
New browsers expose Paint Timing API: first-paint, first-contentful-paint
Alternative measurements are "first meaningful paint" aka something the user waited for, not just content
The page is complete and does not load or move anymore ("visual complete")

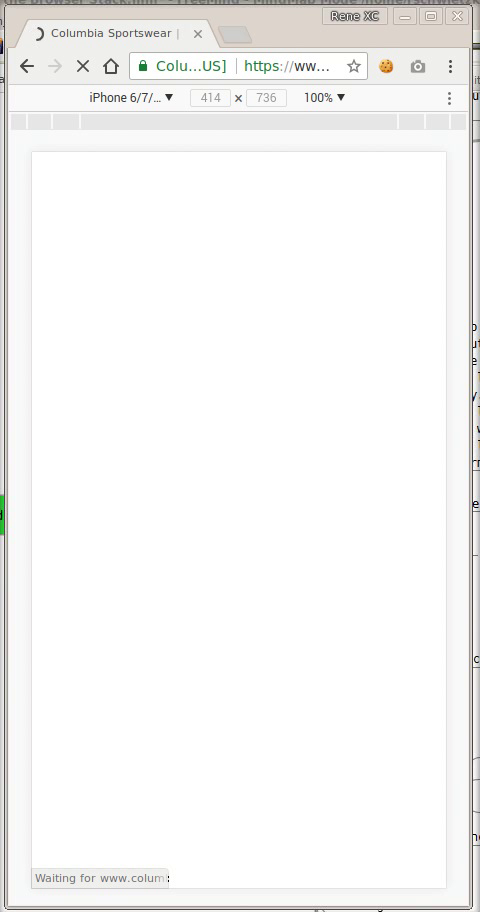

First Paint	First Contentful Paint

First Meaningful Paint	Visual Complete

DOM Events still useful?

How to use the measurements despite being of low interest by the user

domInteractive: How long does parsing take and do I block it with JS?
domContentLoadedStart - domInteractive: How much defer JS do I have?
domContentLoadedEnd - domContentLoadedStart: How long does the DomContentLoaded JS event processing take aka working on the parsed and mostly ready CSSOM? Do I block the CSSOM by any chance?
domComplete: When is really everything downloaded?
loadEventEnd - loadEventStart: How long does the final onload event handling JS take?
loadEventEnd - domLoading: How does does the full page processing take?

How to test it automatically

The Marriage of Automation and Performance Testing

Client vs. Server Testing

Server Side

No real browser
No rendering
Often no static content download
Certain third parties excluded
Available data is request centric
Easier on test resources
Enables large scale testing
Complex UIs hard to automate due to JS based logic handling

Client Side

Real browser
Real loading and rendering
High resource demand
Limited API
Hard to acquire data
Limited control over events

Marry both concepts

What XLT offers to overcome these problems

Married test automation to performance testing
Utilizing special WebDriver setup
Able to retrieve data from the browser
Querying Performance and Navigation Timing API
Storing data alongside other XLT data

Write your UI testing as usual (assuming XLT style for a moment)
Use action concept to mark areas for screenshots and time naming
Use chrome_clientperformance profile
Run as small performance test to measure and sample enough data

Technical Insides

How this all works

Instad of using XLTDriver, Chrome or FirefoxDriver is used
Start profile of the browser configures plugin
Browser pushes data via Websocket to XLT

Actions define time borders to match up names
Test runs and reporting as usual

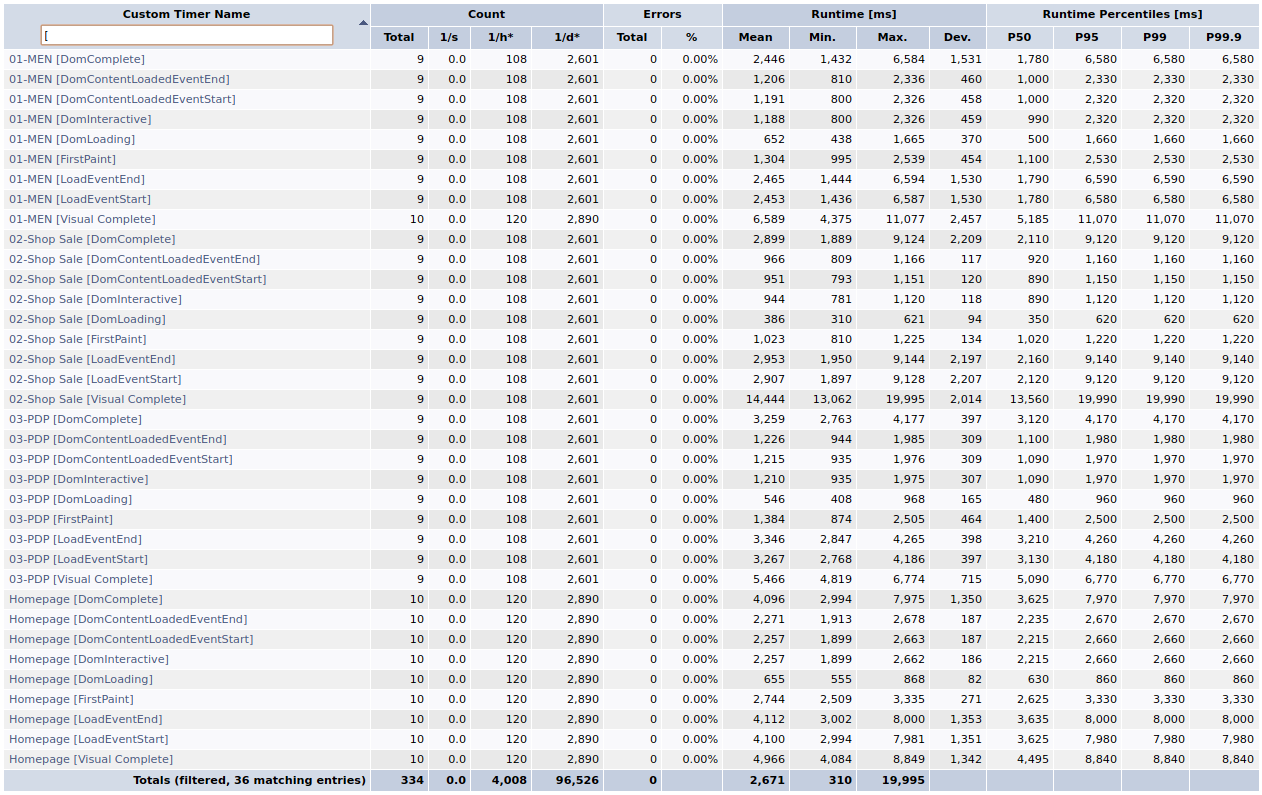

Data will be part of custom timers

Demo

Three examples with different levels of data

BM

Heterogeneous technologies
In many aspects async
Header menu is always after pageload
Wait operations needed to make sure we account for async
Browser detection bug alert screens break page load data
Experimental visual complete detection

SG

Storefront
Mostly synchronous operations
Just a checkout

Columbia

Real world
Long runtimes
Test of visual complete

https://github.com/Xceptance/cpt-demo-test-suite.git

Important Considerations

What to pay attention to

Async operations have to be manually identified
Action time frame has to kept open until these finish
Late changes of the page are hard to code against
Prefer waitForVisible over waitForElement
Don't use a single number to identify issues or slowness
Collect enough data to avoid outliers

Optionally implement a JavaScript ready state of your library
Can be queried and wait for by WebDriver
Less cumbersome than element wait or screen change wait
But might still not tell the real store in terms of visual impression

Other test setups possible

Three APIs are important

You can integrate your personal automation flavor
XLT requires three things to work
- Test suite layout
- Action start and stop
- Enriched WebDriver setup (plugin added)

Test suite standalone execution will write timer.csv
Test suite and XLT performance test setup will enable reporting, load distribution, repeated execution, and more
You can run real large scale tests, if you have the "uumpf" for that
8 cores are between 8 to 16 browsers at max

Questions

Feel free to ask
